PA6 PA66 Fiberglass PA Compounding Machine Nylon Extruder Machine

Product Categories

Corn Starch biodegradable plastic machine [4]
High filler masterbatch machine [4]
Twin screw extruder [4]
Water strand pelletizing line [8]
Air-cooling strand pelletizing line [3]
Air-cooling hot-face pelletizing line [9]
Water-ring hot-face pelletizing line [7]
Under water pelletizing line [9]
PET pelletizing machine & pet sheet machine [5]
WPC extruder machine [7]

Nanjing Yongjie Qixin Machinery Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

PA6 PA66 Fiberglass PA Compounding Machine Nylon Extruder Machine

加工塑料类型 : PA, PA6，PA66 + 玻璃

应用 : 颗粒

螺杆设计 : 双螺杆

双螺杆类型 : 同向平行双螺杆

螺杆材质 : W6Mo5Cr4V2

螺杆直径（mm） : 62.4毫米

螺杆长径比 : 40:1

螺杆转速 (rpm) : 600 rpm

原产地 : Jiangsu, China

品牌 : YongJie

电压 : 380V 50HZ

尺寸(长×宽×高) : 型号

功率（kW） : 90

保修期 : 1年

核心卖点 : 高生产率

视频出厂验货 : 可提供

核心组件 : PLC, 齿轮箱

机械测试报告 : 可提供

关键词 : 塑料尼龙挤出机

颜色 : 任何颜色作为您的要求

RPM( r/min) : 400-800r /min

扭矩 (N.m) : 2250-2815N.M

T/N : 4.7-5.9

认证 : CE ISO9001

逆变器 : ABB品牌

电机品牌 : 贝德西门子

枪管材料 : 45 # 锻钢

真空 : 2.2kw

营销类型 : 热门产品2019

状态 : New

展示厅地点（在海外哪些国家有样品间） : None

适用行业 : 生产车间

核心组件质保期 : 1年

重量 : 5

Contact Now

PA6 PA66 fiberglass PA compounding machine nylon extruder machine

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Model	Diameter(mm)	L/D	RPM ( r/min)	Power (Kw)	Torque(N.m)	T/N	Capacity (Kg/h)
SJSL-20	20	32-44	600	5.5	30	4.8	6.5-15
SJSL-36	36	32-48	600	15	115	4.2	30-75
SJSL-51A	51	32-52	500	45	405	5.1	100-200
SJSL-51B	51	32-52	600	55	415	5.2	150-25
SJSL-63A	63	32-62	400	55	620	4.4	160-250
SJSL-63A	63	32-62	500	75	675	4.8	200-300
SJSL-63B	63	32-64	600	90	675	4.8	225-375
SJSL-63B	63	32-64	800	110	620	4.4	300-500
SJSL-75A	72	32-64	400	90	1015	4.7	225-350
SJSL-75A	72	32-64	500	110	1005	4.6	300-550
SJSL-75B	72	32-64	600	132	990	4.6	400-650
SJSL-75B	72	32-64	800	160	900	4.2	480-800
SJSL-92A	92	32-64	400	250	2815	5.9	650-1050
SJSL-92A	92	32-64	500	250	2250	4.7	750-1250
SJSL-92B	92	32-64	600	280	2365	5.0	900-1500
SJSL-92B	92	32-64	800	280	2250	4.7	1200-2000
SJSL-135A	135	32-48	400	315	6190	4.6	1500-2500
SJSL-135B	135	32-48	500	400	6750	5.1	200-3500

PA6 PA66 Fiberglass PA Compounding Machine Nylon Extruder Machine

Auxiliary of nylon extruder machine PA compounding machine

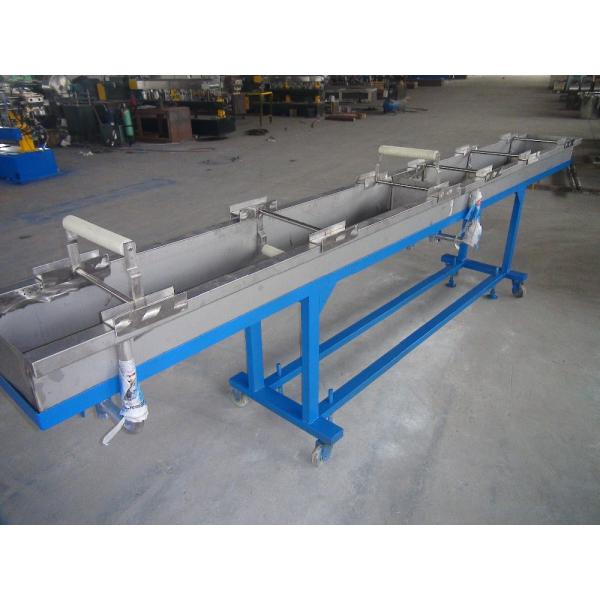

Water trough

SJSL20:1-2m

SJSL-36/51:3m

SJSL-63A/75A:4m

SJSL-75B/95:5/6m

Blowing dryer

SJSL-20: 1.5kw

SJSL-36/51: 1.5kw

SJSL-75A/63A:2.2kw

SJSL-75B/95:3kw,4kw

Pelletizer

SJSL-20: 50kg/h 0.75kw

SJSL-36:100kg/h 2.2kw

SJSL-51/63A: 300kg/h 4kw

SJSL-63B/75A: 500kg/h 5.5kw

SJSL-75B/95:1000kg/h

Application for of nylon extruder machine PA compounding machine

1. Fiber reinforcement and modification: filling glass fiber or carbon fiber for: PP, PA, PBT,

ABS, AS, POM, PPS, PET, etc.

2. Ploymer compounding: PC+ABS, PA+ABS,CPE+ABS,PP+EPDM,PA+EPDM,

PA+SBS, etc.

3. Filling modified: Filling CaCO3,Talc,Titanium, carbon black for PVC PE,PP, EVA etc.

4. Cable material: cable sheath, cable insulation compounds, crosslinking compounds,

optical fiber protection compounds, cable coating material, thermal contraction material,

etc.

5. Dedicated material: PPR pipe compounds, PE crosslinking tube material, cigarettes

filter tip material, acetate fiber material, etc.

6. High Concentration Color Masterbatch: PE,ABS,PS,EVA,PET,PP + color +

additives, etc.

7. Flaming Retardants: PVC, PP, PA, ABS, EVA, PBT + flame retardants, etc.

8. Special Functional Masterbatch: double protection masterbatch, antistatic masterbatch,

anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material, etc.

9. The degradable masterbatch: PP, PE, PS + starch+ additives, etc.

Other product

Water-ring Hot-face pelletizing line

Air-cooling strand pelletizing line

Air-cooling hot-face pelletizing line

Pelletizing in the water line

FAQ

1. Are you a factory or trading company?

Both.

2. Where is your factory located? How can I visit there?

Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.

(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;

(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

(1) Excellent quality control

(2) First-class service

(3) Professional Tech. and R&D team

(4) Quick manufacturing time

(5) Quite competitive price

4. How long is the delivery time?

Under normal conditions, products are delivered within 35 days.

5. How can I know the stauts of my order?

We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.

6. How long is the warranty?

We can offer one-year warranty for the whole machine.
